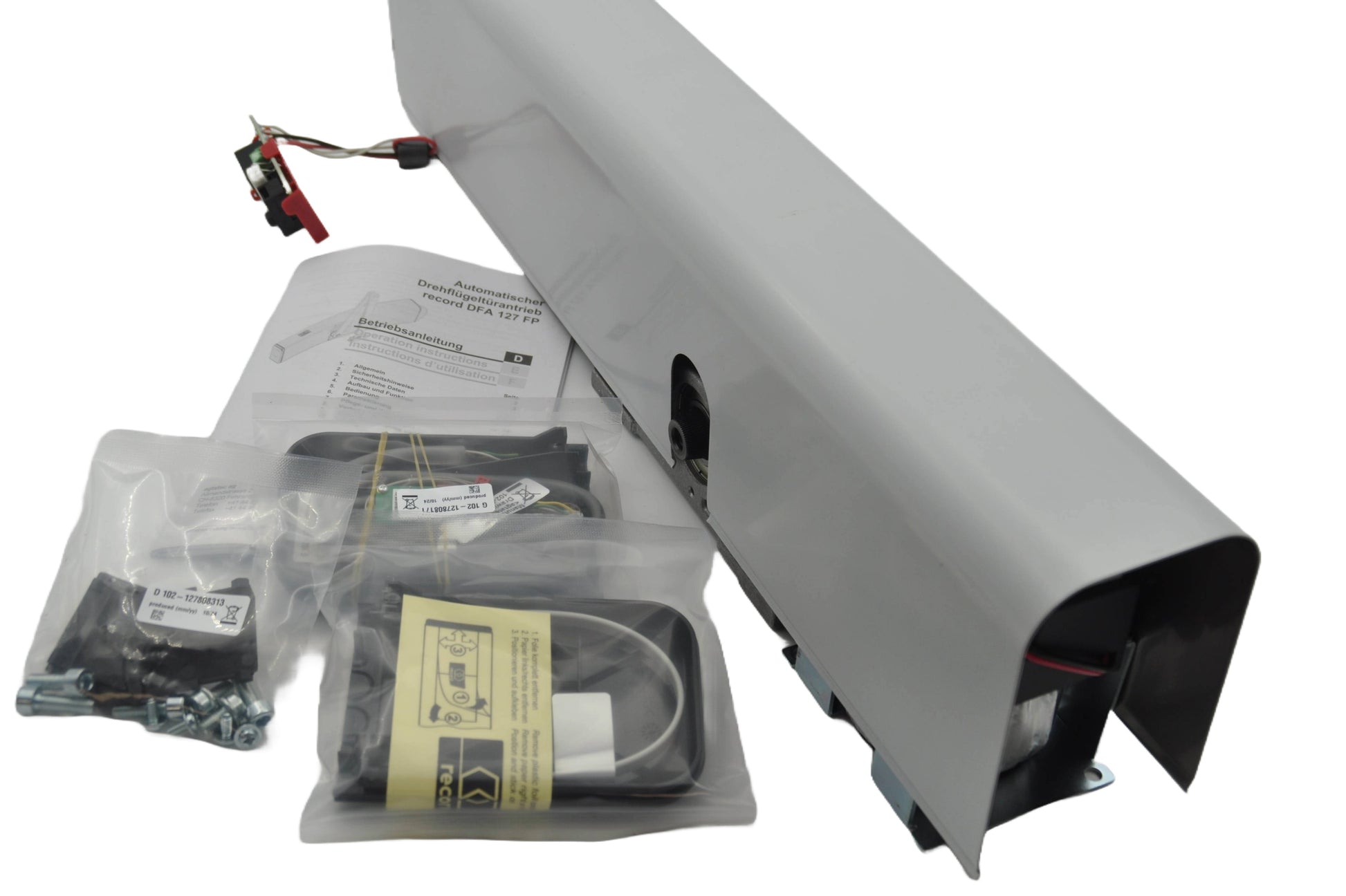

• A view of a DFA 127 Operator with cover and components/fixings in clear packaging with instruction manual, on a white background.

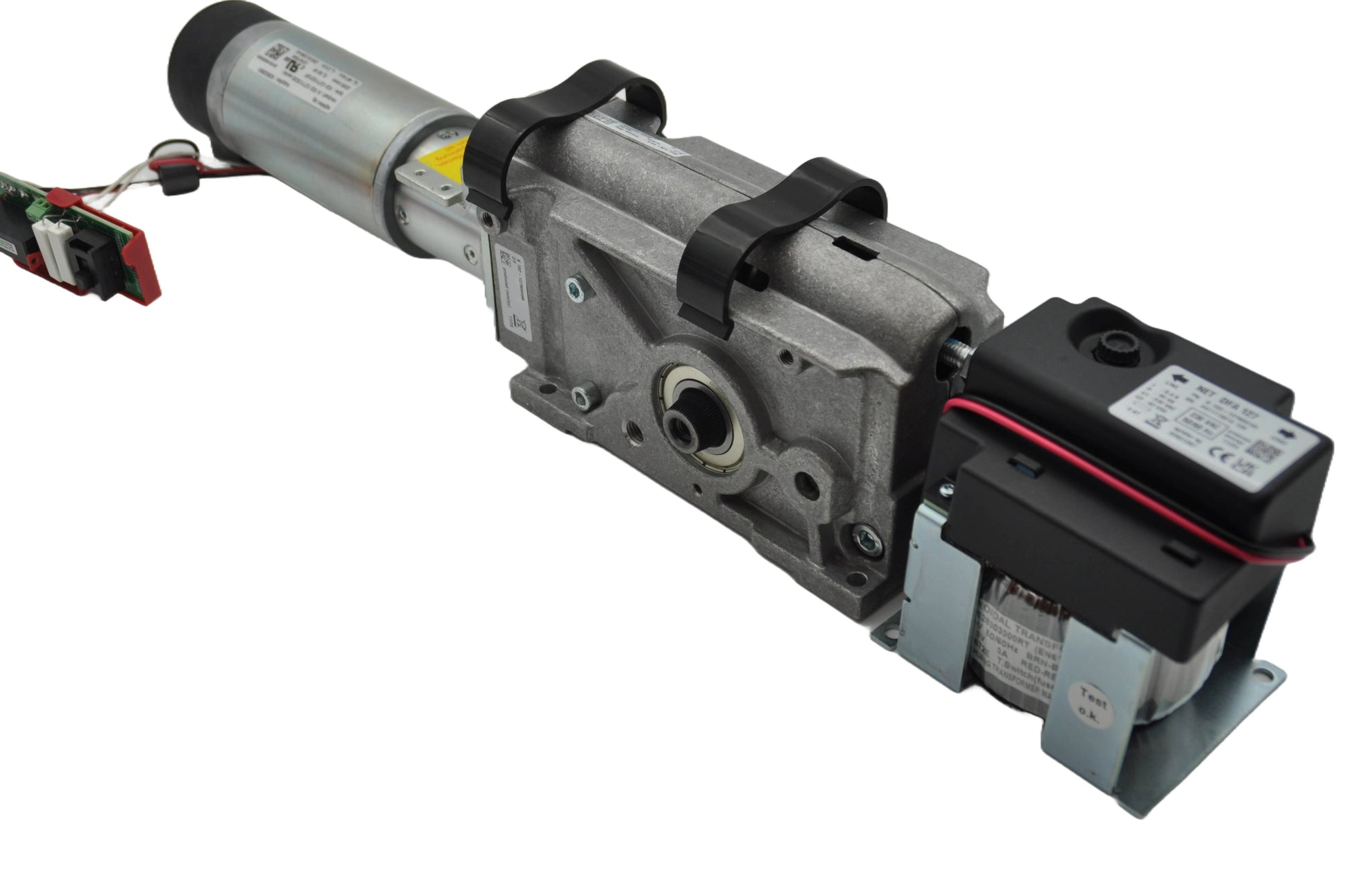

  • A view of a DFA 127 Operator with motor brake locking with components on a white background.
1 2

DFA 127 Operator with motor brake locking

DFA 127 Operator with motor brake locking

Net: £862.00
Incl. VAT: £1,034.40
Taxes included.

Record DFA 127 Operator with Motor Brake Locking – Automatic Swing Door Operator

The Record DFA 127 with motor brake locking is a high-performance automatic swing door operator designed for robust and secure access control. Engineered for demanding environments, this version of the DFA 127 includes an electromagnetic motor brake, providing enhanced locking security by holding the door firmly in the closed position—ideal for external doors or areas requiring added protection against unauthorised access or wind pressure.

Key Features & Benefits:

  • Motor Brake Locking (Integrated):
    Electromechanical locking mechanism holds the door securely closed without the need for an external lock—ideal for safety-critical or wind-prone installations.

  • Smooth, Silent Operation:
    Known for Record’s signature quiet and fluid movement, suitable for public buildings, healthcare, education, and retail.

  • Universal Application:
    Fully adjustable for push or pull arm configurations, single or double doors, left- or right-hand hinged.

  • Modular Design:
    Allows easy integration of sensors, access control devices, battery backup, and fire alarm interfaces.

  • Advanced Control Features:
    Microprocessor-controlled with adjustable opening/closing speeds, hold-open time, and resistance sensitivity.

 Technical Specifications:

Feature Description
Operator Model Record DFA 127 with Motor Brake
Application Single/double leaf swing doors
Opening Angle Up to 115° (standard); more with extended arms
Max Door Weight Up to 250 kg (depending on arm type and setup)
Mounting Options Overhead lintel, transom, or integrated in frame
Power Supply 230 V AC / 50–60 Hz
Control Unit Microprocessor-based with programmable parameters
Locking Type Electromagnetic motor brake (locking when closed)
Compliance EN 16005, DIN 18650, CE marked
View full details

FAQ's

What locking feature is integrated into this Record DFA 127 operator?

This DFA 127 configuration includes an integrated electromagnetic motor brake for compatible door-locking requirements.

Can this DFA 127 be used in push and pull applications?

Yes. The product information states that compatible push- and pull-side arm arrangements can be used, subject to the door configuration.

Is the operator suitable for single and double swing-door installations?

The listing states that the DFA 127 platform can be configured for compatible single- and double-leaf swing-door installations.

What mains supply is stated for the operator?

The product information specifies a 230V AC, 50–60Hz mains supply.

What should be confirmed before ordering this motor-brake version?

Confirm the door handing, push or pull arm arrangement, single or double-door configuration and the required locking function before specifying this version.

Instruction Manual

View Manual
