Assa Abloy - SW200 Pull, Black

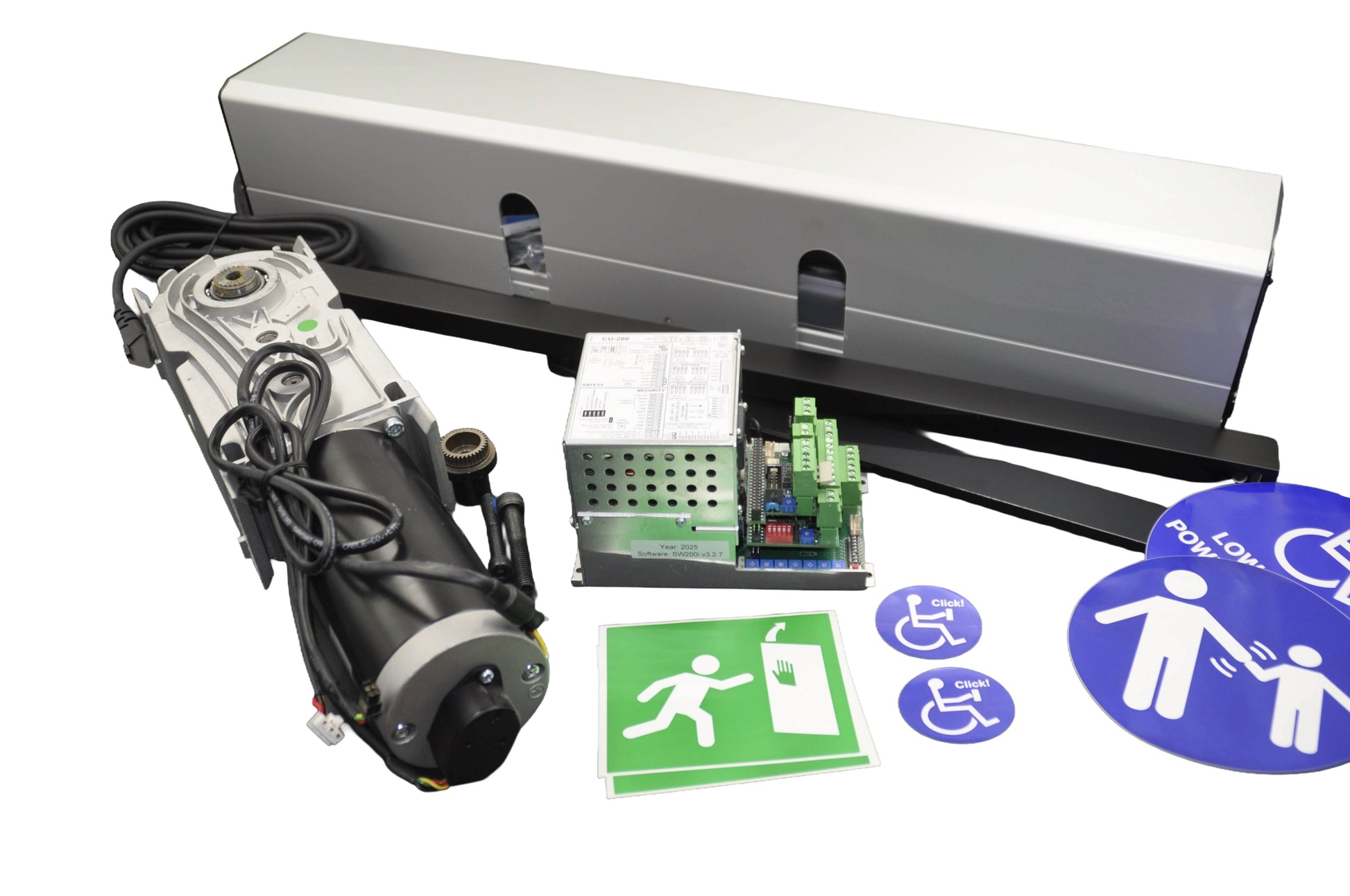

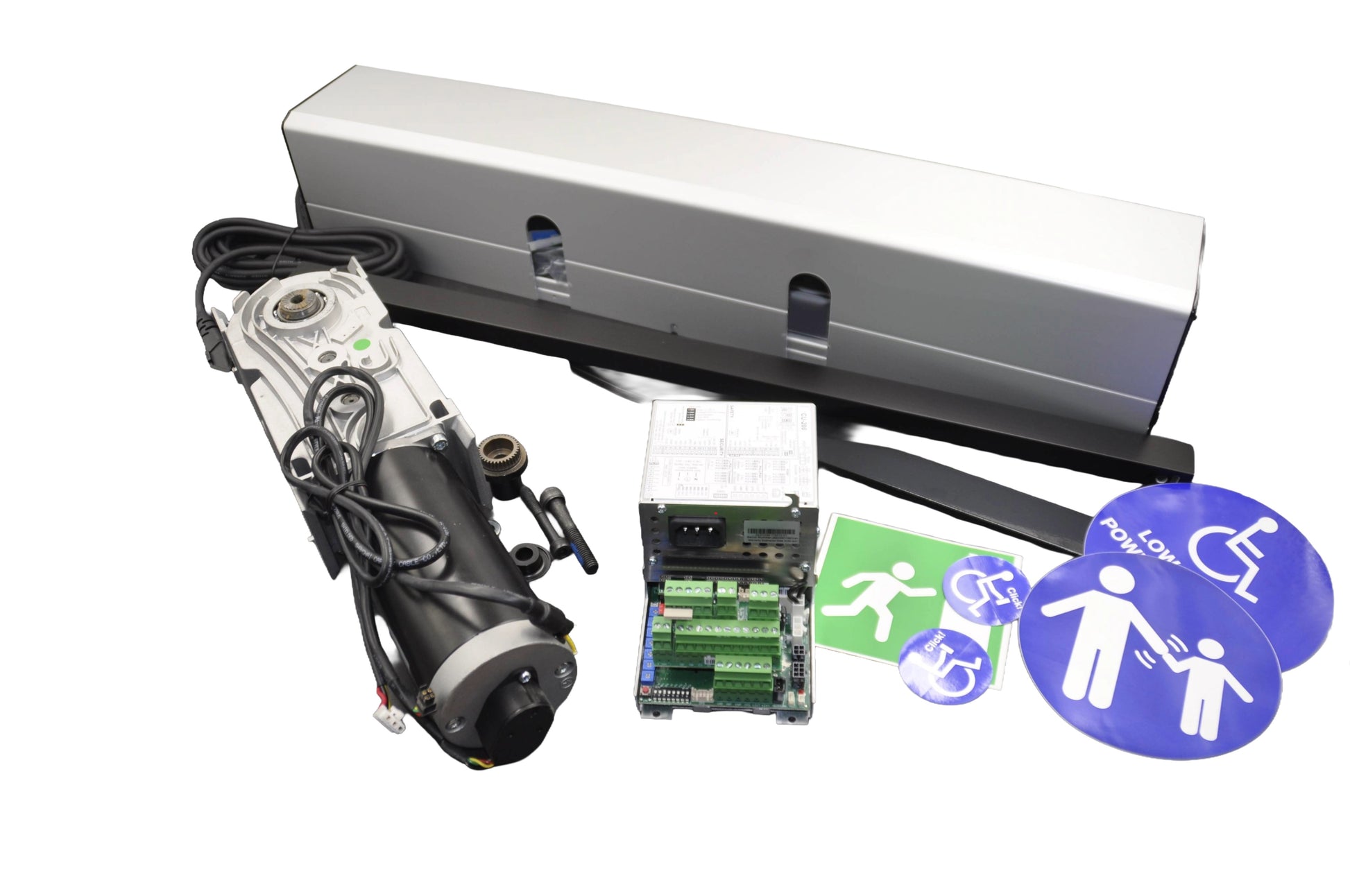

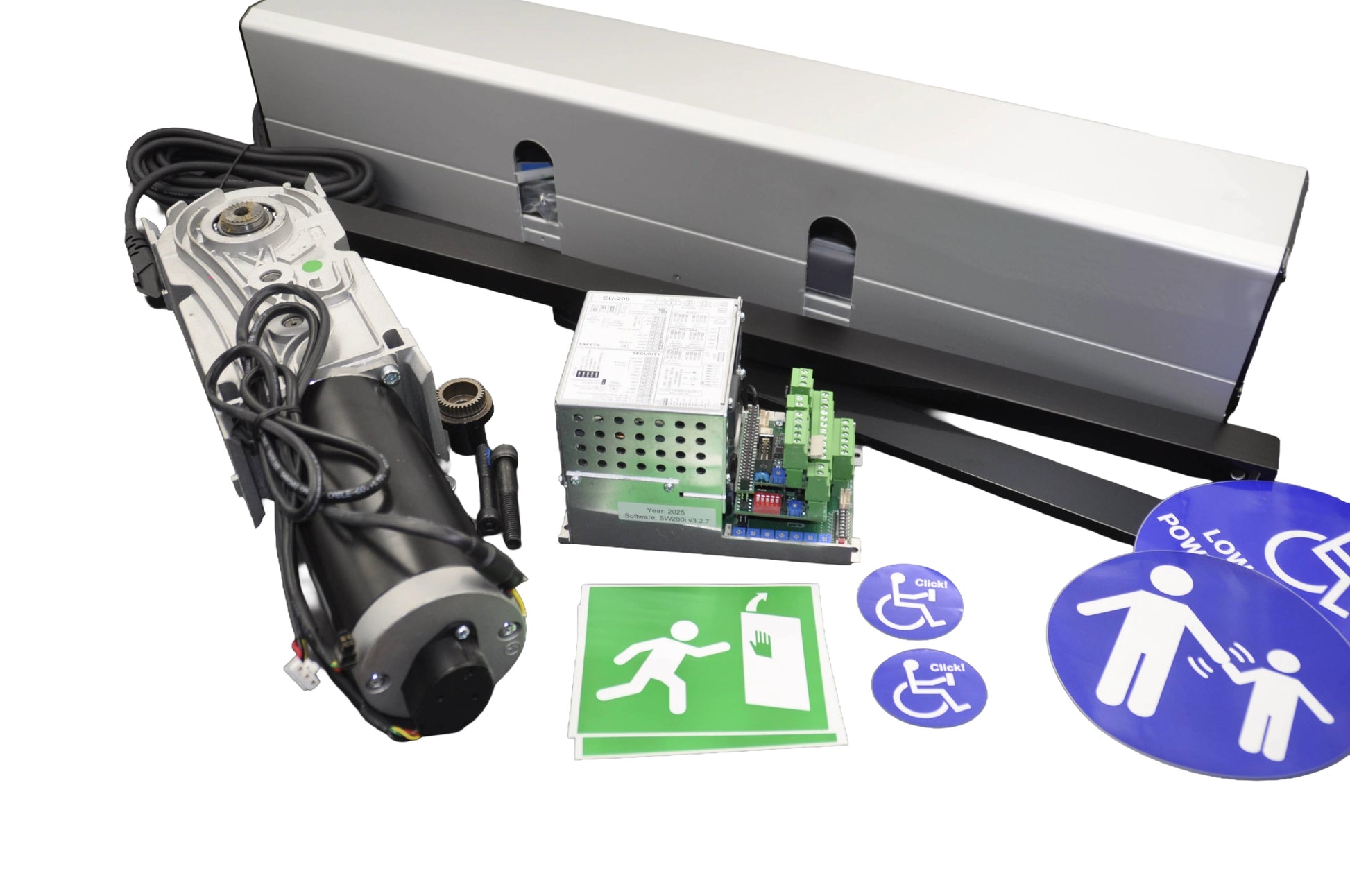

ASSA ABLOY SW200 Automatic Swing Door Operator – Pull Version (Black Endcaps & Arm)

The ASSA ABLOY SW200 Pull Operator is a high-performance automatic swing door system designed for demanding environments. Supplied with black endcaps and a black pull arm, this version offers a sleek, modern finish while delivering powerful and reliable automation for inward-opening doors.

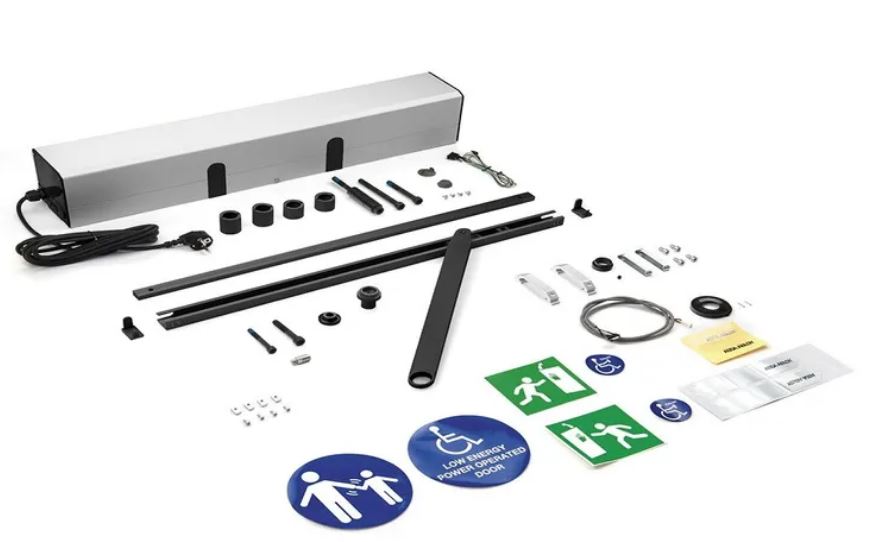

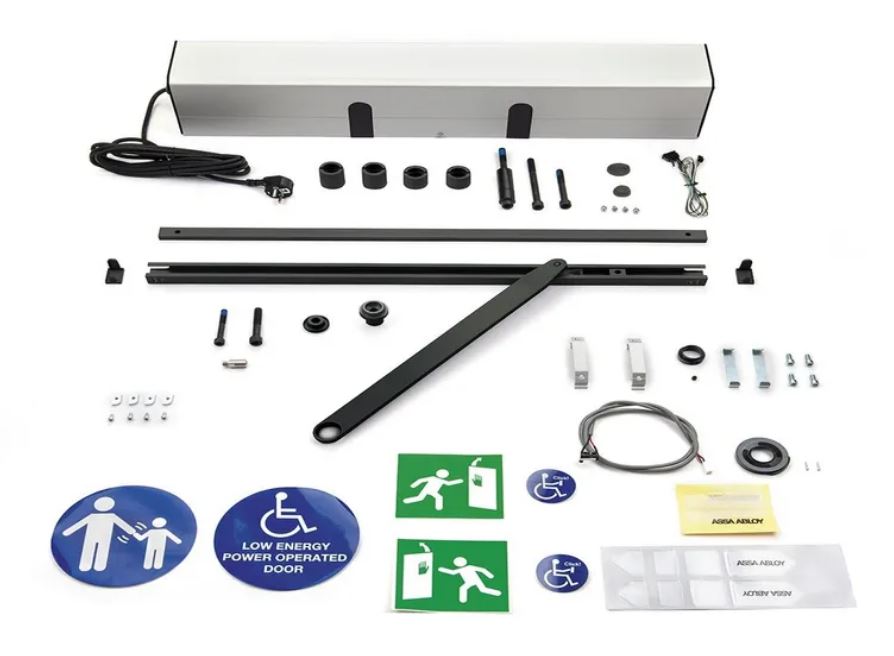

Complete operator package with shaft extension kit 20/50/70 mm,

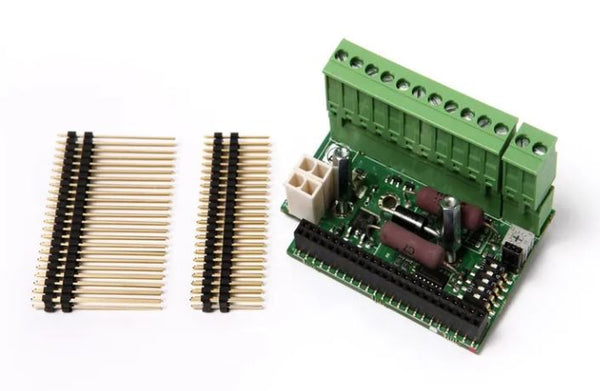

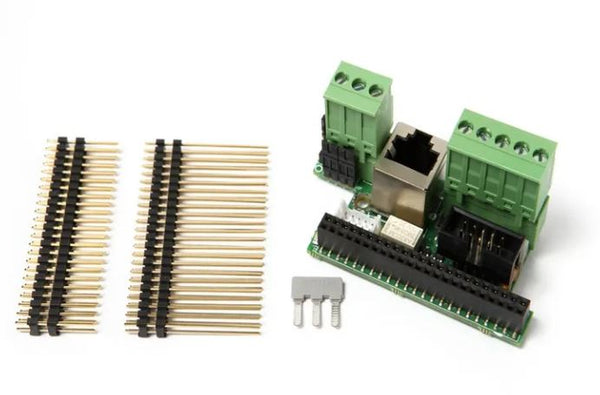

Micro switch, cam kit, ON/OFF/Hold open switch, EXU-SI, SA-boards, silver anodized cover and Black pull arm system.

Engineered for long-term performance, the SW200 is ideal for use in commercial buildings, healthcare settings, and public entrances where safety, accessibility, and aesthetics are essential.

Key Features & Benefits

• Pull-Side Configuration
  Designed for surface mounting on the non-hinge side of the door, using a pull arm to operate inward-opening doors.

• Stylish Black Finish
  Features black endcaps and a matching black articulated pull arm for a clean, architectural appearance.

• Heavy-Duty Operation
  Suitable for high-traffic environments and larger doors, with smooth and powerful operation even under frequent use.

• Quiet and Efficient Drive
  The electro-mechanical motor provides low-noise performance and precise control, ideal for noise-sensitive locations.

• Flexible Control Options
  Fully adjustable opening and closing speeds, hold-open times, and activation methods including push & go and sensor control.

• Fire Door Compatible
  Suitable for use with fire-rated doors when installed with approved accessories and coordination systems.

• Built-In Safety Logic
  Includes obstacle detection, safety reversal, and compliance with EN16005 and DDA/Equality Act requirements.

Technical Summary

• Power Supply: 100–240 V AC, 50/60 Hz

• Drive Type: Electro-mechanical, 24 V DC

• Mounting: Surface-mounted – pull side

• Max Inertia (Pull Configuration): 80 kg·m²

• Opening Angle: Up to 180°

• Temperature Range: –20 °C to +45 °C

• Ingress Protection: IP20

• Finish: Black endcaps and pull arm

• Compliance: EN16005, EN1634, EN1158, DIN 18263-4

• Supports: Safety sensors, access control, battery backup, programme selectors, and fire coordination
